CELL PT®

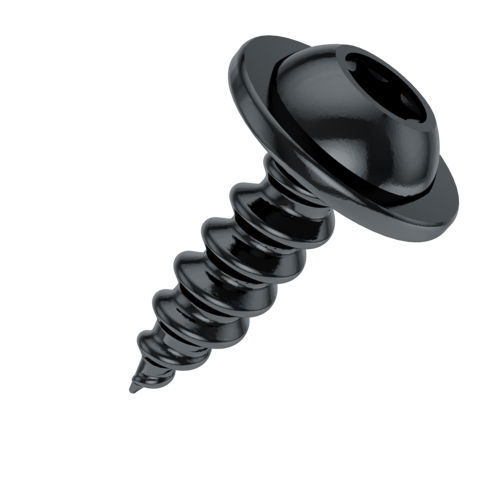

EJOT Cell PT Schraube - Pos 2

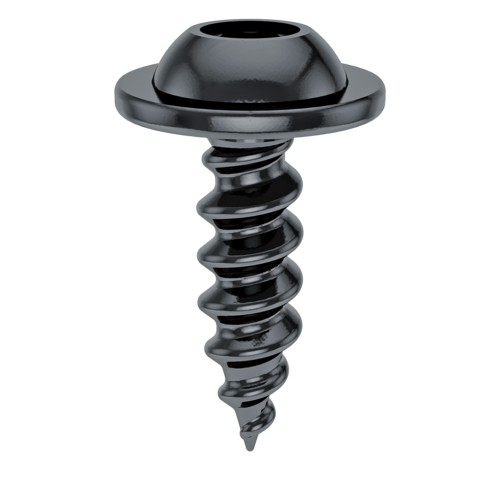

EJOT Cell PT Schraube - Pos 1

Specification

  • Overview

    • Standard lengths: from approx. 3.5 times nominal diameter
    • Standard diameter: from 3.5 to 6.5 mm (more on request)
    • For cellular foamed thermoplastics
    • High vibration fatigue strength
    • Safety due to high tensile, torsional and vibration resistance
    • Also available in plastic

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

The EJOT CELL PT® screw is a special element for the safe and problem-free direct fastening in cellular foamed thermoplastic materials.

The special thread contour was developed for cellular foamed thermoplastics and the functionality was confirmed in a comprehensive test series. In the case of blind hole screw joints, the specially formed point penetrates into the plastic material at the bottom of the blind hole and a further increase of the torques is achieved.
